Основная Информация.
Модель №.
DS-7604NXI-K1
Видео вход / выход
4 /8 CH
Аудио вход / выход
4CH Input /1CH Output
Дистанционное Управление
С дистанционным управлением
главный процессор
встроенный процессор
атрибуты граней
нет данных
обнаружение лиц и анализ
1-кан., 4 мп; 1-кан., 8 мп
сравнение изображений с лица
2-кан
обнаружение движения 2.0
поддержки
защита периметра
поддержки
полоса пропускания входящего трафика
40 мбит/с.
пропускная способность исходящих вызовов
80 мбит/с.
выход hdmi
1-кан
выход vga
1-кан
аудиовыход
1-канальный, rca (линейный, 1 kω)
двунаправленный звук
1-канальный, rca
синхронное воспроизведение
4-кан
удаленное подключение
128
api
Onvif
Транспортная Упаковка
Paper Box
Характеристики
CE, FCC, ROHS,
Торговая Марка
original logo /oem
Происхождение
China
Код ТН ВЭД
8525801390
Производственная Мощность
10000PCS/Month
Описание Товара

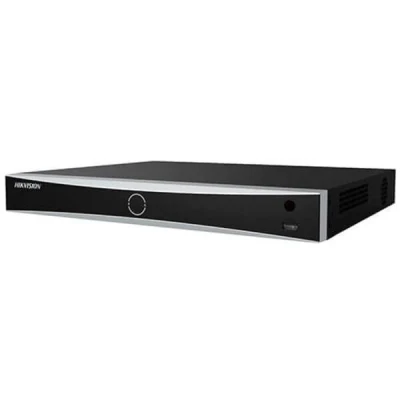

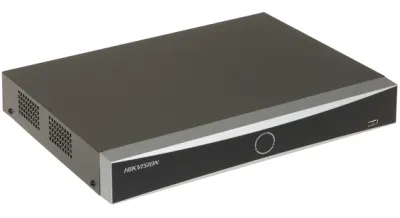

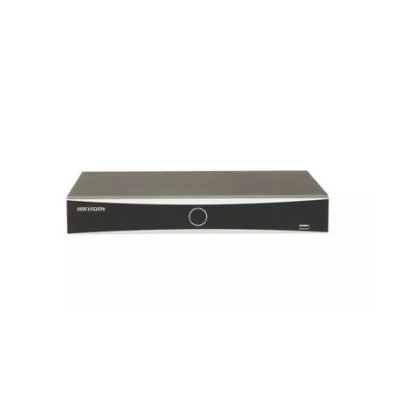

4-ch 1U K Series AcuSense 4K NVR DS-7604NXI-K1/ DS-7604NXI-K1/4P
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Video recorders and data analyzers
With built-in analytics, Hikvision's Network Video Recorders (NVRs) provide advanced artificial intelligence capabilities for any connected data stream, even those from conventional security cameras. Empowered by AI chips and high-precision algorithms, Hikvision NVRs combine high-efficiency video recording with abundant options for data analytics. These advanced NVRs bring powerful applications to a variety of users with diverse requirements.
All-around protection of video data
Rest assured of Hikvision NVRs' high system stability and data availability with:
- Data protection through Redundant Array of Independent Disks (RAID), Automatic Network Replenishment (ANR), N+1 or N+M hot spare, and cloud storage
- Enhanced cybersecurity with two-factor authentication and user access control
- Dual operating systems run on embedded Linux kernel
- Extended device life and data corruption prevention through hard-drive health monitoring
Easier-than-ever data management
Data management becomes centralized and easy with Hikvision NVRs serve as a management hub for valuable data from various edge devices including access control, alarm sensors, network, thermal, and solar-powered cameras, and more.
Management is simplified using:
- A user-friendly interface
- Flexible access with PCs or mobile devices
- Quick connection with front-end devices
Specification
| Intelligent Analytics | |
| AI By Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI By Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
| Facial Recognition | |
| Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
| Face Attributes | N/A |
| Face Picture Library | Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 2-ch |
| Facial Detection And Analytics Performance | 1-ch, 4 MP;1-ch, 8 MP |
| Motion Detection 2.0 | |
| By Device | All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Perimeter Protection | |
| By Device | 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Video And Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI1/VGA simultaneous output |
| CVBS Output | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Network | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| PoE (DS-7604NXI-K1/4P) | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50 W |
| Standard | IEEE 802.3af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each HDD |
| Alarm In/Out | 4/1;N/A;N/A (4/1 is optional) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
| Weight | ≤1 kg (without HDD, 2.2 lb.) |
| Certification | |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Shipping | DHL, Fedex, UPS, Sea shipping |
| Warranty | 2 years |
| OEM services | Yes!!! you can OEM with your own logo |
| Technical support | Yes!!! we have technical team |
